Using Web Panels

Web Panels are accessed via the RouteMaster VR Web UI. Panels will work with any modern browserm using Javascrpt and HTML5 standards. They can be used on any device with a compatible browser, including tablets and smartphones.

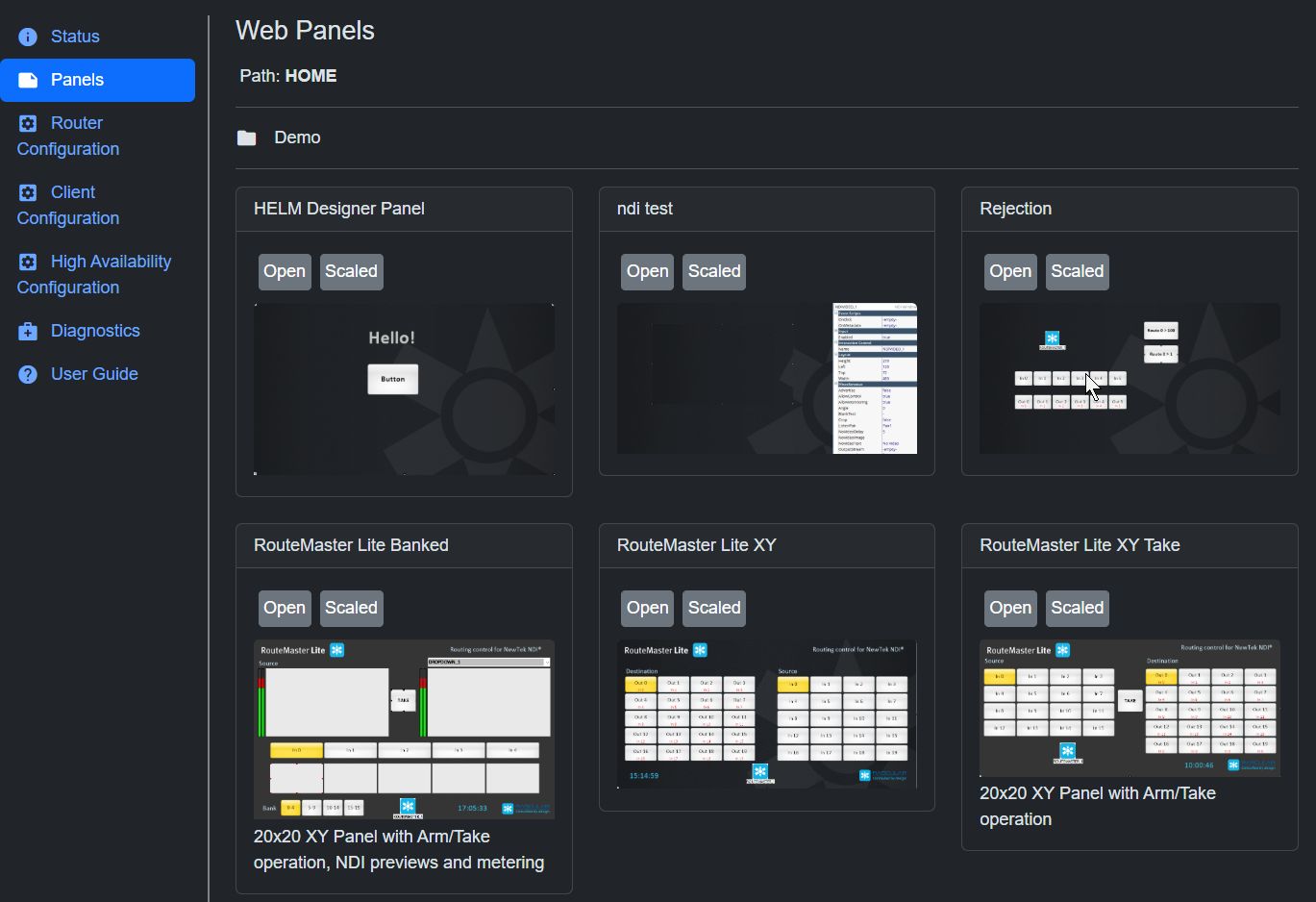

RouteMaster VR comes with some sample web panels already built-in.

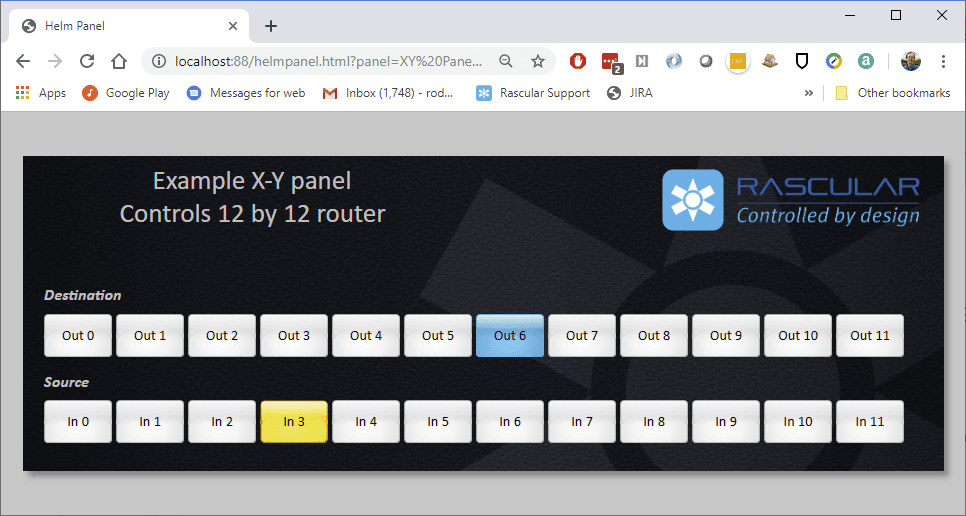

Let’s take a look at the Sample 12x12 XY  panel. Clicking on an output shows you what input is currently routed to it, clicking in the Input Selection area you can switch crosspoints on the currently selected output.

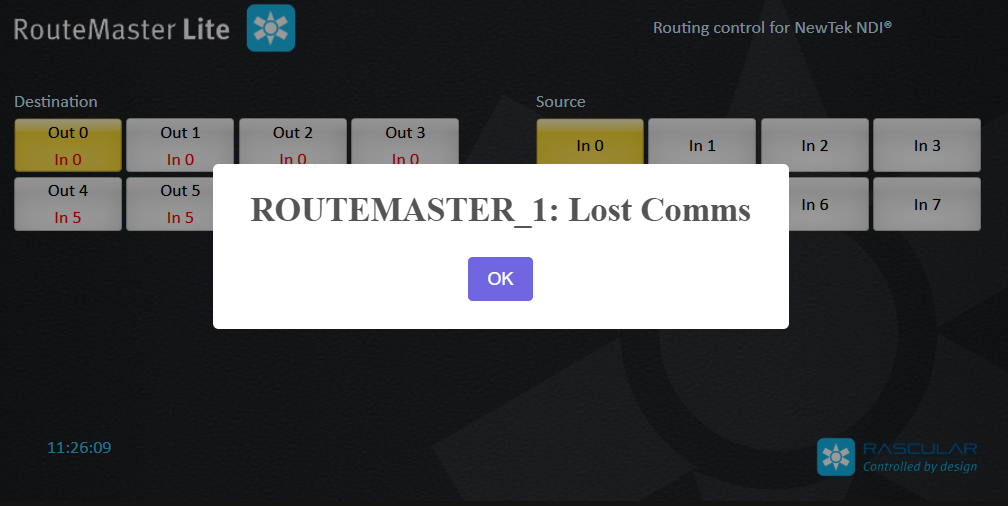

Web panels have live communication with RouteMaster VR via the WebSocket protocol so they are constantly updated. If communication is lost for any reason the panel notifies you immediately.
